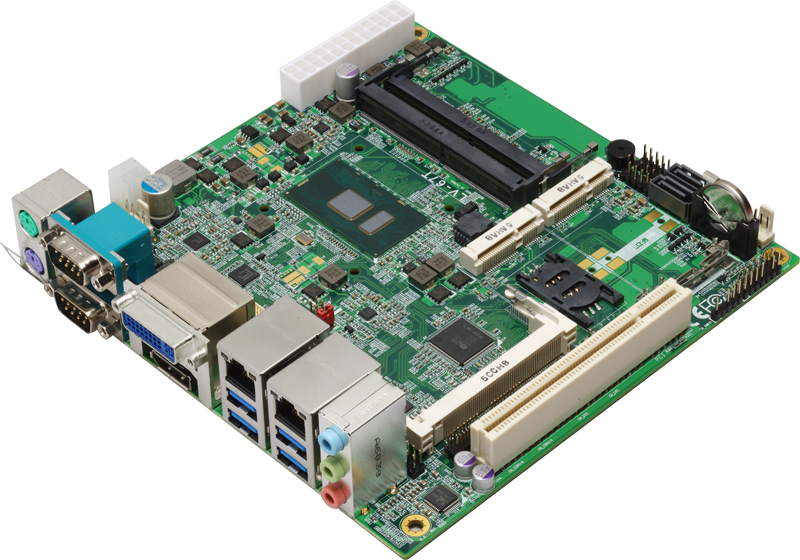

Built-in CPU : LV-67T Intel¢ç Skylake (6th) Core¢â U-series Processor
Mini-ITX mobile Intel¢ç Skylake¢â U-series Processor, Support for two DDR4 SO-DIMM 1866/2133 MHz to 32GB. Onboard Display port, DVI-I, CRT, LVDS, HD Audio, 1 x Intel¢ç Gigabit PHY LAN,1 x Intel¢ç Gigabit LAN, SATA3, 5 x RS232, 1 x RS232/422/485, 4 x USB2.0, 4 x USB3.0, 8-bit GPIO, 1 x PCI slot, 1 x MiniPCI, 2 x Mini-PCIe , 1 x SIM.

Key Feature



  • CPUIntel¢ç Skylake 6th generation Intel¢ç Core¢â U-series Mobile processor, FCBGA1356 package.

  • MemoryTwo DDR4 1866/2133 MHz SO-DIMM up to 32 GB.

  • Chipset: Sunrise Point-LP chipset.

  • Integrated GraphicsIntel¢ç Gen 9 integrated HD Graphics.

  • DVI interface: Onboard DVI-I connector.

  • LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply

  • Display port interface: Onboard Display port connector.

  • CRT interface: 16-pin connector.

  • LAN Interface1 x Intel¢ç I210 Gigabit LAN and 1 x Intel¢ç I219-LM Gigabit PHY LAN (Support iAMT11).

  • Serial ATASupport 2 x SATA3 for RAID 0,1.

  • Audio: Realtek ALC262 High Definition Audio.

  • Internal I/O: 2 x SATA3, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS, 1 x CRT.

  • Rear I/O: 1 x DisplayPort(optional), 1 x DVI-I, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x RS232/422/485, 1 x Audio.

  • Extended interface: One PCI slot, two PCIE Mini card, one SIM socket (Mini_card2 support mSATA).

  • GPIO interfaceOnboard programmable 8-bit Digital I/O interface.

  • External Audio: Line-in, MIC-in, Front, Rear, Center/Subwoofer.

  • Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or DC input 9~24V.


  Specification


Form Factor

Mini-ITX Motherboard

Processor

6 th Generation Intel¢ç Skylake Core¢â U-series Mobile Processor

Package Type:  FCBGA1356

Memory

2 x 260-pin DDR4 1866/2133 MHz SO-DIMM up to 32GB. (Unbufferred,  none-ECC memory supported only)

Chipset

Sunrise Point-LP

Integrated Graphics

Intel¢ç Gen 9 integrated HD Graphics

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

2 x SATA3 support RAID 0, 1

CRT Interface

Onboard 16-pin CRT interface

 DVI Interface Onboard DVI connector

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

 Display port Interface Onboard Display port connector

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

1 x IntelR I210 Gigabit Ethernet Controller

1 x IntelR I219-LM Gigabit PHY Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIE X 16 slot‚ 1 x PCIE Mini card, 1 x Half-Size PCIE Mini card, one SIM socket

(Optional support mSATA for Mini_Card2)

Internal I/O Port

2 x SATA3, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x SMBUS, 1 x CRT

Rear I/O Port

1 x PS/2, 1 x DisplayPort, 1 x DVI-I, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x  RS232/422/485, 1 x Line-in, 1 x Line-out, 1 x MIC-in

Power Requirement

Standard 24-pin ATX power supply (20-pin is compatible) or P4 4-pin 9~24V

Board Dimension

170 mm x 170 mm (L x W)

Temperature

Operating within 0 ~ 60¡ÆC (32 ~ 140¡ÆF)

Storage within -20 ~ 80¡ÆC (-4 ~ 176¡ÆF)





  Ordering Guide

Standard

Intel¢ç 6th Gen CoreTM U-series Processor, DisplayPort, DVI-I, VGA, LVDS, USB2.0, USB3.0, MiniPCIe, PCI, MiniPCI, mSATA, LAN, Audio, SATA3, COM, LCD inverter, SMBUS, DIO, LPC, PS/2, DC out.

 LV-67T3

i3-6100U Processor

LV-67T5

i5-6300U Processor

 LV-67T7

i7-6600U Processor

 Built-in CPU : LV-67T Intel¢ç Skylake (6th) Core¢â U-series Processor
Mini-ITX mobile Intel¢ç Skylake¢â U-series Processor,
Support for two DDR4 SO-DIMM 1866/2133 MHz to 32GB.
Onboard Display port, DVI-I, CRT, LVDS, HD Audio,
1 x Intel¢ç Gigabit PHY LAN,1 x Intel¢ç Gigabit LAN, SATA3, 5 x RS232,
1 x RS232/422/485, 4 x USB2.0, 4 x USB3.0, 8-bit GPIO, 1 x PCI slot, ...more
 Desktop CPU : LV-67S Intel¢ç Skylake (6th) Core¢â i7 / i5 / i3 S-series and Xeon¢ç E3-1200 v5 Processor LGA1151 CPU
Mini-ITX desktop Intel¢ç Skylake¢â i7 / i5 / i3 S-series and Xeon¢ç E3-1200 v5 Processor,
FCLG1151 package. Support for two DDR4 DIMM 1866 / 2133 MHz to 32GB.
Onboard Display port, DVI-I, HDMI, CRT, LVDS, HD Audio,
1 x Intel¢ç Gigabit PHY LAN,1 x Intel¢ç Gigabit LAN, SATA3, 5 x RS232,
1 x RS232/422/485, 4 x USB2.0, 6 x USB3.0,8-bit GPIO, PCI-Express X16 slot, ...more
 Built-in CPU : LV-67R Intel¢ç Skylake (6th) Core¢â i7 / i5 / i3 H-series Processor
Mini-ITX mobile Intel¢ç Skylake¢â i7 / i5 / i3 H-series Processor,
Support for two DDR4 SO-DIMM 2133 MHz to 32GB.
Onboard Display port, DVI-I, HDMI, CRT, LVDS, HD Audio,
1 x Intel¢ç Gigabit PHY LAN,1 x Intel¢ç Gigabit LAN, SATA3, 5 x RS232,
1 x RS232/422/485, 4 x USB2.0, 6 x USB3.0,8-bit GPIO, PCI-Express X16 slot, ...more
 Built-in CPU : LV-67P Intel¢ç Braswell Series Processor
Mini-ITX mobile Intel¢ç Braswell Series Processor,
Support for two DDR3L SO-DIMM MHz to 8GB.
Onboard DVI, HDMI, optional CRT / LVDS / Display port, HD Audio,
2 x Intel¢ç Gigabit LAN, SATA3, 5 x RS232, 1 x RS232/422/485, 4 x USB2.0,
4 x USB3.0, 8-bit GPIO, PCI-Express X16 slot, 1 x Mini-PCIe , 1 x mSATA. ...more
 Built-in CPU : LV-67O Intel¢ç Celeron¢ç J1900 , N2930 & Atom¢ç E3845 Processor
Mini-ITX embedded Intel¢ç Celeron¢â J1900 / N2930
& Atom¢â E3845 Mobile processor.
Support for two DDR3L SO-DIMM 1066/1333 MHz up to 8 GB.
Onboard Display port, DVI, CRT, 2 x LVDS, HD Audio, SATAII
2 x Intel¢ç Gigabit LAN, 5 x RS232, 1 x RS232/422/485, ...more
 Desktop CPU : LV-67N Support 4th Generation Intel¢çCore¢â i7 / i5 / i3 LGA1150 CPU
Mini-ITX support 4th generation Intel¢ç Core¢â i7 / i5 / i3  LGA 1150 processor
Intel¢ç Q87 Express chipset, DDR3 1333/1600 MHz up to 16 GB,
Onboard VGA, DVI, LVDS, Display port, HD Audio, 2 x Intel¢ç Gigabit LAN,
 4 x SATA with RAID ,1 x RS232/422/485, 3 x RS232, 4 x USB2.0, 6 x USB3.0,
8-bit GPIO, PCI-Express X16 slot, Mini-PCIe . ...more
 Mobile CPU : LV-67M Support 4th Generation Intel¢çCore¢â i7 / i5 / i3 BGA1364 CPU
Mini-ITX support 4th generation Intel¢ç Core¢â i7 / i5 / i3 PCBGA 1364 processor
Intel¢ç QM87 Express chipset, DDR3L SO-DIMM 1333/1600 MHz up to 16 GB,
Onboard VGA, DVI, LVDS, Display port, HD Audio, 2 x Intel¢ç Gigabit LAN,
 4 x SATA with RAID ,1 x RS232/422/485, 5 x RS232, 4 x USB2.0, 6 x USB3.0,
8-bit GPIO, PCI-Express X16 slot, 2x Mini-PCIe . ...more
 AMD : LV-683 Onboard AMD Dual-core T56N 1.65 GHz
Onboard AMD Dual-core T56N 1.65 GHz
AMD A55E FCH chipset, DDR3 1066/1333 MHz up to 8.0 GB,
Support VGA, LVDS, DVI, HD audio, 2 x Intel¢ç Giga LAN, 4 x SATA, 1 x SIM
1 x RS232/422/485, 5 x RS232, 10 x USB2.0, LPT, 8-bit GPIO, SMBUS
PCI slot, Mini-PCIe & Mini-PCI sockets, ATX P/S or Full range DC 5V ~ 24V input ...more
 Built-in CPU : LV-67L Intel¢ç Celeron¢ç Processor 807UE or 847E
Mini-ITX supports Intel¢ç Sandy Bridge Processor 807UE/847E,
Intel¢ç HM65 Express chipset, DDR3 1066/1333 MHz up to 4.0 GB (LV-67LNB),
or 16GB (LV-67LBU),Support CRT, DVI, LVDS, 2 x Gigabit LAN,10 x USB2.0,
HD Audio, PCI-Express X16 ,Serial ATAII ,Serial ATAIII, PCIE mini card, LPC, mSATA, Standard 24-pin ATX P/S or Full ranged 9V~24V(¡¾5%) DC Input
 Mobile CPU : LV-67K Support 3rd Generation Intel¢çCore¢â i7 / i5 / i3 Mobile processor
Mini-ITX support 3rd generation Intel¢ç Core¢â i7 / i5 / i3 Mobile processor
Mobile Intel¢ç QM77 Express chipset, DDR3 1066/1333/1600 MHz up to 16 GB,
Onboard VGA, LVDS, DVI, HD audio, 2 x Gigabit ethernet, 6 x SATA
1 x RS232/422/485, 5 x RS232, 6 x USB2.0, 4 x USB3.0, SPDIF, 8-bit GPIO,
PCI-Express X16 slot , 2 x Mini-PCIe sockets , 1 x SIM socket ...more
