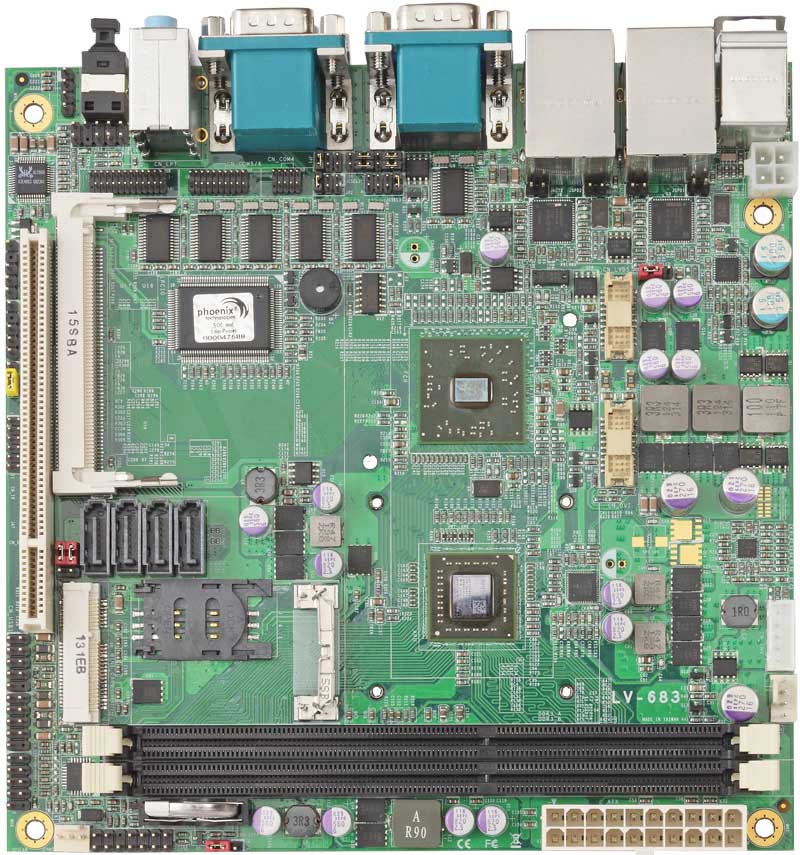

| AMD : LV-683 Onboard AMD Dual-core T56N 1.65 GHz |
|
|
Onboard AMD Dual-core T56N 1.65 GHz
AMD A55E FCH chipset, DDR3 1066/1333 MHz up to 8.0 GB,
Support VGA, LVDS, DVI, HD audio, 2 x Intel® Giga LAN, 4 x SATA, 1 x SIM
1 x RS232/422/485, 5 x RS232, 10 x USB2.0, LPT, 8-bit GPIO, SMBUS
PCI slot, Mini-PCIe & Mini-PCI sockets, ATX P/S or Full range DC 5V ~ 24V input
Key Feature |
-
CPU: Onboard AMD Dual-core T56N 1.65 GHz
-
Memory: 2 x 240-pin DDR3 1066/1333 SO-DIMM SDRAM up to 8.0 GB
-
Chipset: AMD A55E FCH
-
Display Interface: Integrated AMD Radeon HD 6300 series graphic
-
LVDS interface: 18-bit single channel LVDS interface
-
DVI interface: onboard 20-pin DVI interface
-
LAN Interface: 2 x Intel® 82583V Giga LAN
-
Serial ATA: Support 4 x SATAII up to 300MB/s
-
Audio: Realtek ALC888 High Definition Audio.
-
I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 10 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, 1 x LPT, 1 x SMBUS
-
Extended interface: PCI , Mini-PCIe & Mini-PCI sockets
-
GPIO interface: Onboard programmable 8-bit Digital I/O interface.
-
Power requirement : 20-pin ATX power supply or DC 5V ~ 24V input |
|
|
Specification |
|
Form Factor |
Mini-ITX motherboard |
|
Processor |
Onboard AMD Dual-core T56N 1.65 GHz |
|
Memory |
2 x 240-pin sockets support DDR3 1066/1333 up to 8.0 GB |
|
Chipset |
AMD A55E FCH |
|
Real Time Clock |
Chipset integrated RTC with onboard lithium battery |
|
Watchdog Timer |
Generates a system reset with internal timer for 1min/s ~ 255min/s |
|
Serial ATA Interface |
4x Serial ATA II interface up to 300MB/s |
|
VGA Interface |
Integrated AMD Radeon HD 6300 series graphic |
|
LVDS Interface |
18-bit single channel LVDS interface |
| DVI Interface |
onboard 20-pin DVI interface |
|
Audio Interface |
Realtek ALC888 HD Audio |
|
LAN Interface |
2 x Intel® 82583V Gigabit Ethernet Controller |
|
GPIO Interface |
Onboard programmable 8-bit digital I/O interface |
|
Extended Interface |
32-bit PCI slot, Mini-PCIe & Mini-PCI sockets |
|
Internal I/O Port |
3 x RS232, 1 x GPIO, 1 x CDIN, 1 x SMBus,1 x Audio, 1 x IrDA,
6 x USB2.0, 1 x LPT, 1 x DVI, 1 x LVDS |
|
External I/O Port |
1 x PS/2 keyboard/mouse, 2 x RJ45 LAN, 1 x VGA, 4 x USB2.0,
1 x RS232/422/485 & 2 x RS232, HD audio, SPDIF |
|
Power Requirement |
20-pin ATX power supply & DC 5V ~ 24V input |
|
Board Dimension |
170mm x 170 mm (L x W) |
|
Temperature |
Operating within 0 ~ 60°C
Storage within -20 ~ 85°C | |
|
 |
 |
| |
|
|
|
